inspur1  Introduction:

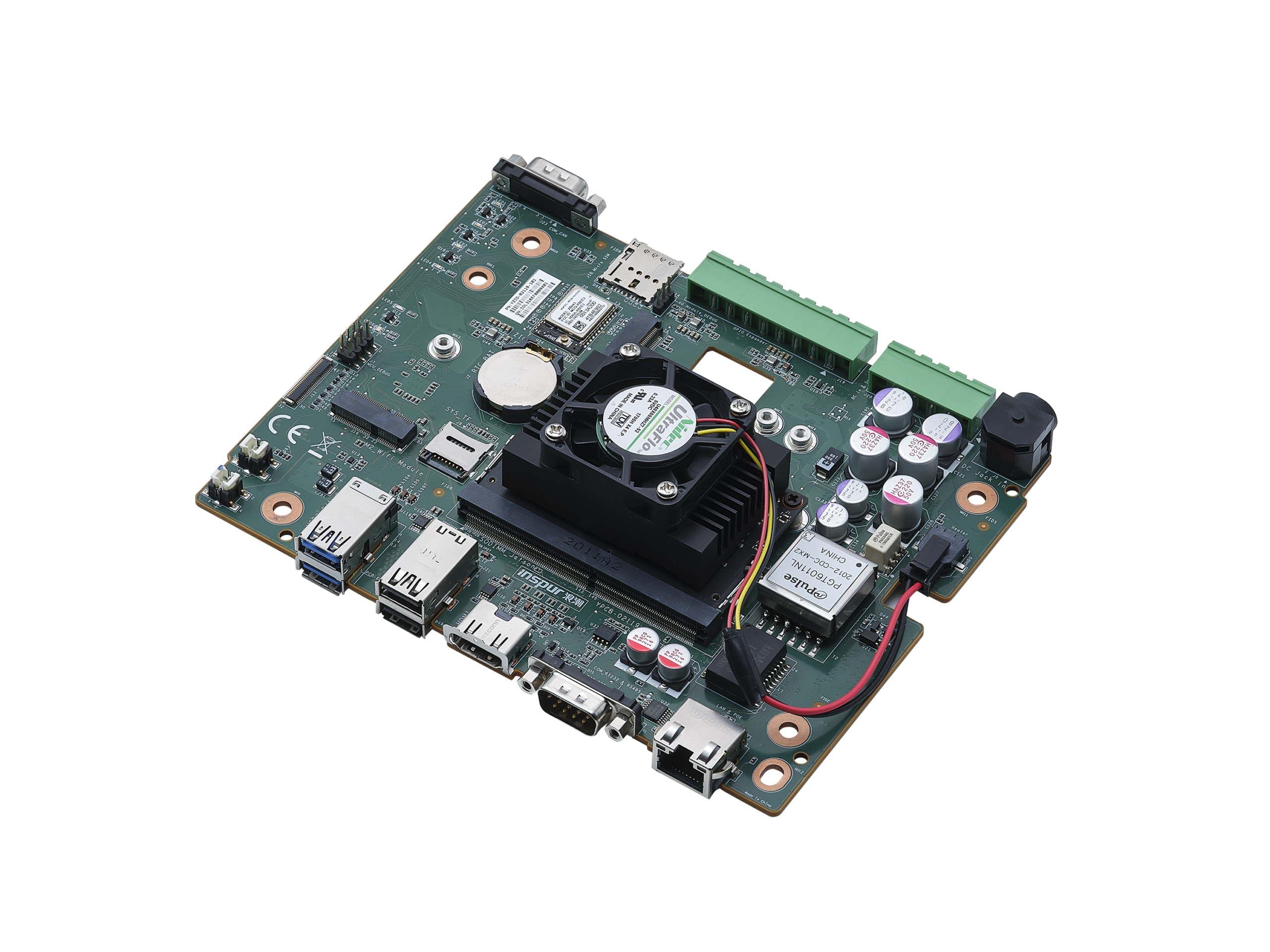

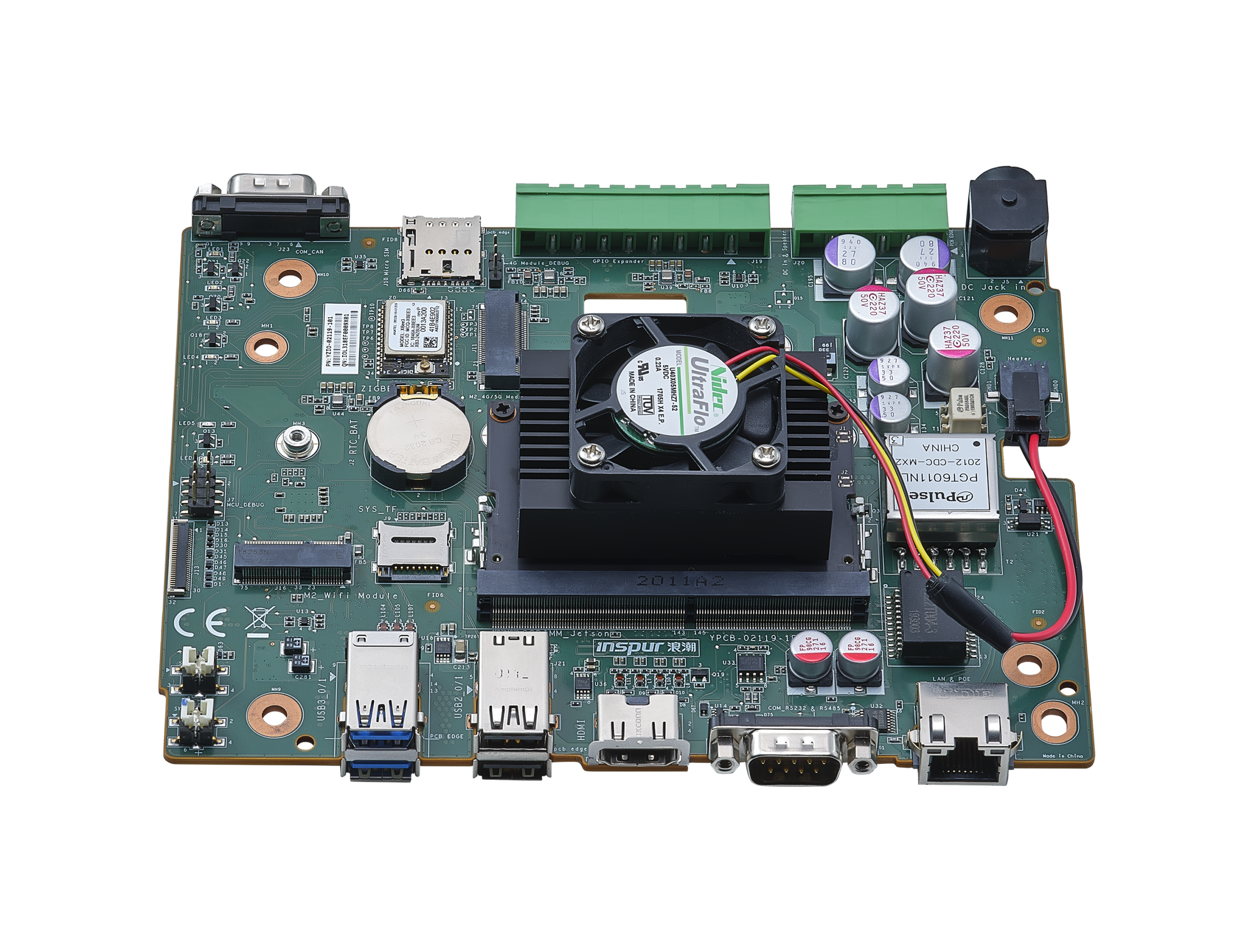

Inspur-NX-Dev development system working with low power and high performance, the development system is designed for edge computing application development and deployment. It provides the unified software stack JetPack SDK which includes board-level support pack (BSP), Linux operating system, NVIDIA CUDA, GPU acceleration libraries, the DeepStream SDK for video analysis and Isaac SDK for robotics development. AI software and cloud-native workflows on other NVIDIA platforms are also compatible with it, helping users start easily and develop efficiently.



inspur1  Product Features:

  1. The development system comes with a complete operating system, facilitating rapid development.
  2. Supporting the entire NVIDIA computing ecosystem, enabling rapid migration of inference algorithms from X86 to NVIDIA JetsonTM.
  3. Supporting multiple wireless communication modules.※1
  4. Supporting three power supply modes: DC-JACK, DC-IN, and POE.※2

※1:Assemblies need to be ordered separately.

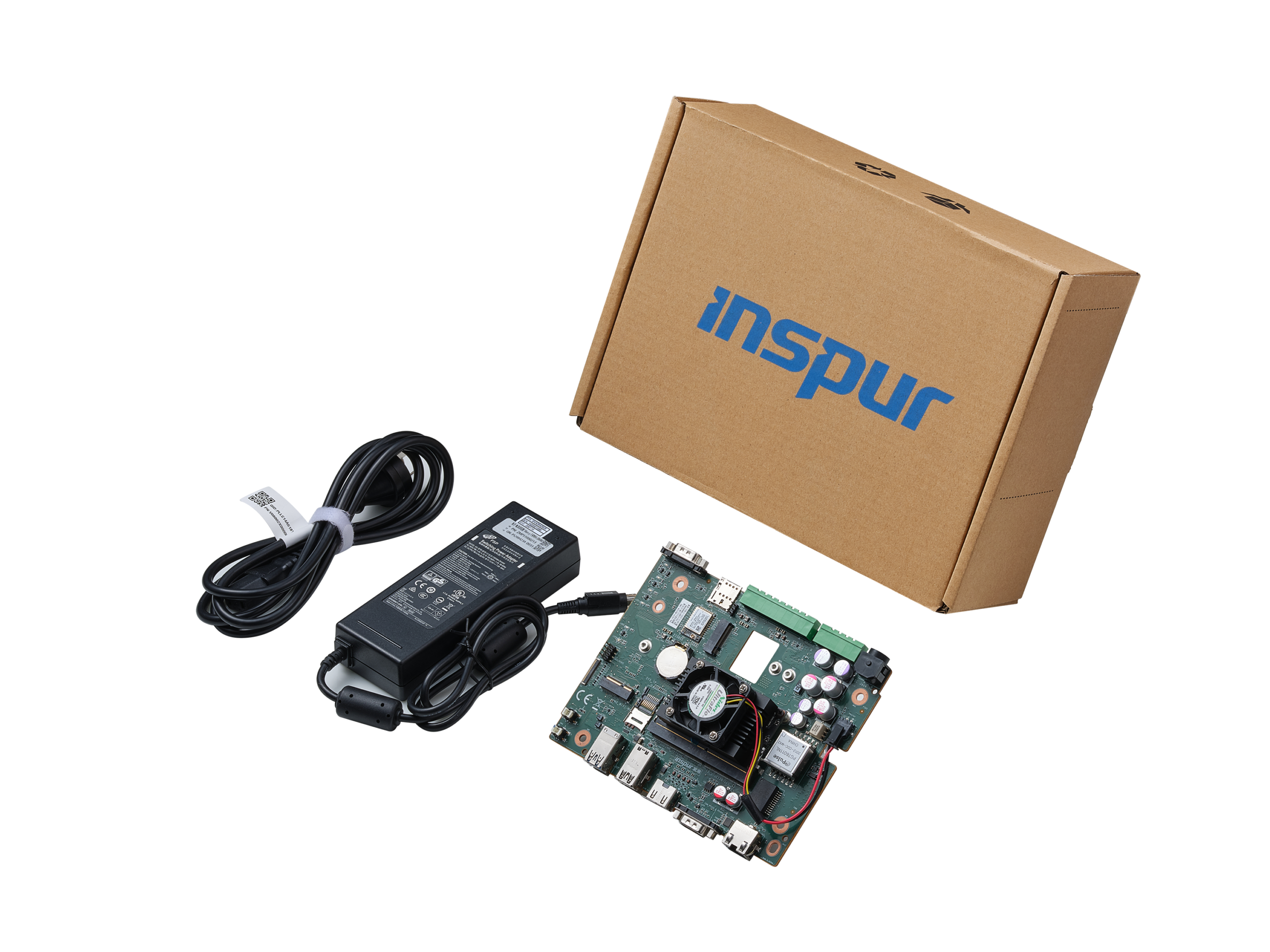

※2:Default configuration: power adapter with DC-JACK port.

inspur1  Development System Specification:

Product Model Inspur-NX-DEV
Module Jetson XavierTM NX
AI Performance 21 TOPS(INT8)
GPU 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
CPU 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3
Memory 8GB 128-bit LPDDR4x @1866MHz 59.7GB/s
Storage 16 GB eMMC 5.1
Power 9V~36V (Industrial DC-in & DC jack)/ / POE PD complying 802.3at
Video Encode 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265)

2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264)

Video Decode 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265)

2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264)

Display 1x HDMI2.0
LAN 1x RJ45 GBE
USB 2*USB2.0 + 2*USB3.0
Wireless Supports 4G/5G/WIFI/ZigBee modules
CAN & Serial Ports 1x CAN port  / 1x COM RS232/485
Expansion Speaker (Warning horn) / 8-bit IO signal (DIO) / SD card
Protection Anti-mold, anti-moisture and anti-salt spray
Dimension 172mm*132.8mm
